DC/DC CONVERTER 12V 20W

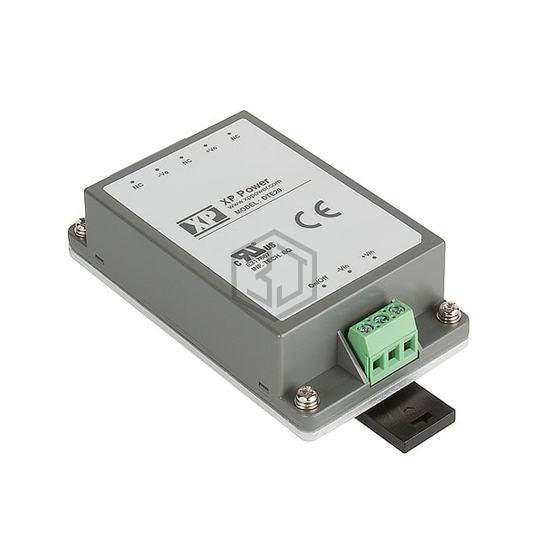

DTE2048S12-D is a Industrial, DIN Rail Power Supplies manufactured by XP Power. DC/DC CONVERTER 12V 20W. Key specifications: operating temperature -40°C ~ 85°C, current - output (max) 1.67A, size / dimension 3.78" L x 2.13" W x 0.92" H (96.0mm x 54.0mm x 23.3mm), number of outputs 1.
In Stock: 8,670
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | DC |
| Number of Outputs | 1 |
| AC Voltage - Input | - |
| DC Voltage - Input (Min) | 18V |
| DC Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 1.67A |
| Power (Watts) | 20W |
| Voltage - Isolation | - |
| Applications | ITE (Commercial) |
| Efficiency | 91% |
| Operating Temperature | -40°C ~ 85°C |
| Features | - |
| Size / Dimension | 3.78" L x 2.13" W x 0.92" H (96.0mm x 54.0mm x 23.3mm) |
| Approval Agency | CB, CE, cURus |
| Standard Number | 62368-1 |
Submit your RFQ for DTE2048S12-D and get a quote within 24 hours.
