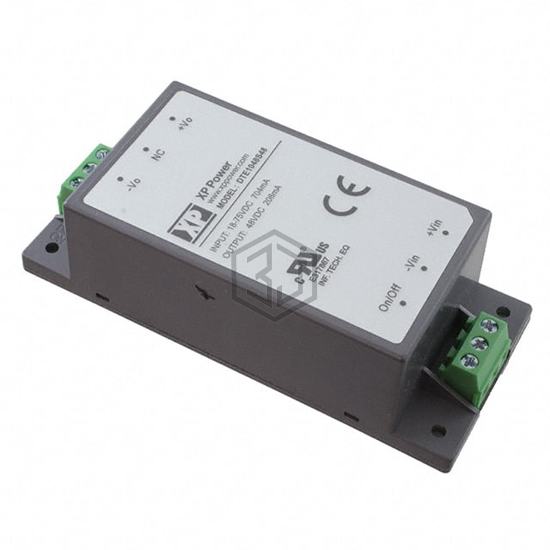

DC/DC CONVERTER 48V 10W
DTE1048S48 is a DC DC Converters manufactured by XP Power. DC/DC CONVERTER 48V 10W. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 105°C (With Derating), current - output (max) 208mA, size / dimension 3.11" L x 1.34" W x 0.87" H (79.0mm x 34.0mm x 22.0mm).
In Stock: 5
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed |
| Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 75V |
| Number of Outputs | 1 |
| Voltage - Output 1 | 48V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 208mA |
| Power (Watts) | 10W |
| Voltage - Isolation | 3 kV |
| Applications | ITE (Commercial) |
| Efficiency | 84% |
| Operating Temperature | -40°C ~ 105°C (With Derating) |
| Mounting Type | Chassis Mount |
| Size / Dimension | 3.11" L x 1.34" W x 0.87" H (79.0mm x 34.0mm x 22.0mm) |
| Approval Agency | CB, CE |
| Standard Number | 62368-1 |
Submit your RFQ for DTE1048S48 and get a quote within 24 hours.
