DC/DC CONVERTER 5.1V 6.1W

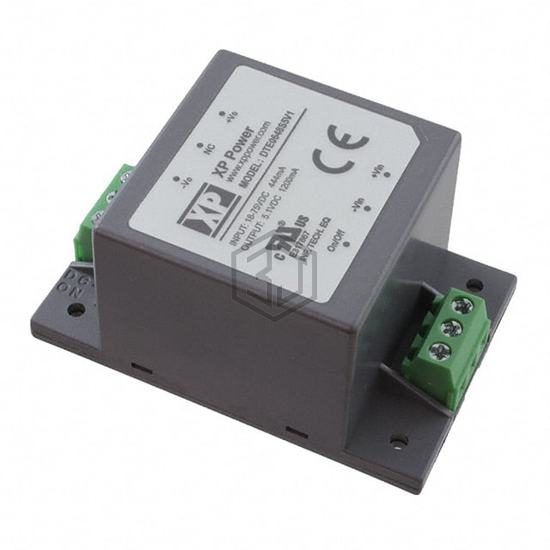

DTE0648S5V1 is a DC DC Converters manufactured by XP Power. DC/DC CONVERTER 5.1V 6.1W. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 105°C (With Derating), current - output (max) 1.2A, size / dimension 2.09" L x 1.34" W x 1.04" H (53.0mm x 34.0mm x 26.5mm).
In Stock: 9
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed |
| Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 75V |
| Number of Outputs | 1 |
| Voltage - Output 1 | 5.1V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 1.2A |
| Power (Watts) | 6.1W |
| Voltage - Isolation | 3 kV |
| Applications | ITE (Commercial) |
| Efficiency | 80% |
| Operating Temperature | -40°C ~ 105°C (With Derating) |
| Mounting Type | Chassis Mount |
| Size / Dimension | 2.09" L x 1.34" W x 1.04" H (53.0mm x 34.0mm x 26.5mm) |
| Approval Agency | CB, CE |
| Standard Number | 62368-1 |
