AC-DC DIN RAIL POWER SUPPLY 120W

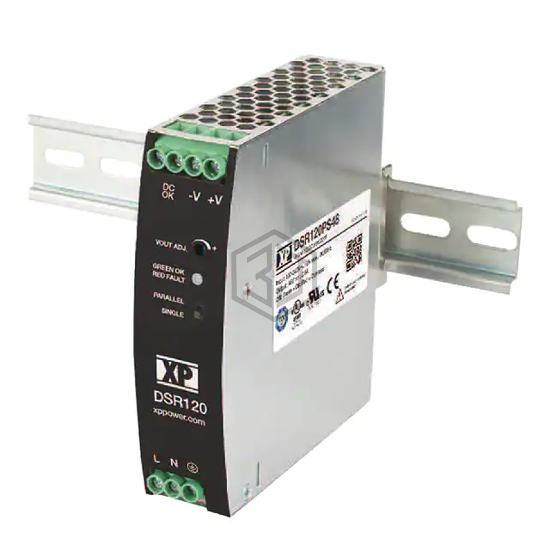

DSR120PS48 is a Industrial, DIN Rail Power Supplies manufactured by XP Power. AC-DC DIN RAIL POWER SUPPLY 120W. Key specifications: operating temperature -25°C ~ 70°C (With Derating), current - output (max) 2.5A, size / dimension 4.47" L x 1.26" W x 4.88" H (113.5mm x 32.0mm x 124.0mm), number of outputs 1.
In Stock: 61
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | AC |
| Number of Outputs | 1 |
| AC Voltage - Input | 85 ~ 264 VAC |
| DC Voltage - Input (Min) | - |
| DC Voltage - Input (Max) | - |
| Voltage - Output 1 | 48V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 2.5A |
| Power (Watts) | 120W |
| Voltage - Isolation | 3 kV |
| Applications | Industrial, ITE (Commercial) |
| Efficiency | 92% |
| Operating Temperature | -25°C ~ 70°C (With Derating) |
| Features | Adjustable Output, Universal Input |
| Size / Dimension | 4.47" L x 1.26" W x 4.88" H (113.5mm x 32.0mm x 124.0mm) |
| Approval Agency | CB, CE, cURus, cULus, TUV |
| Standard Number | 62368-1 |
