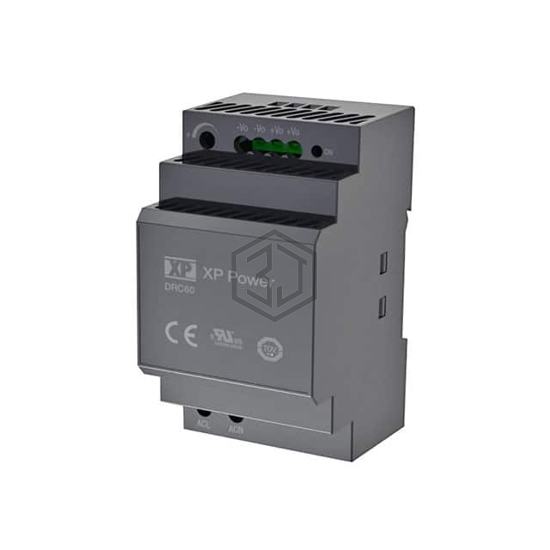

AC/DC CONVERTER 48V 60W
DRC60US48 is a Industrial, DIN Rail Power Supplies manufactured by XP Power. AC/DC CONVERTER 48V 60W. Key specifications: operating temperature -30°C ~ 70°C (With Derating), current - output (max) 1.25A, size / dimension 2.28" L x 2.05" W x 3.65" H (58.0mm x 52.0mm x 92.7mm), number of outputs 1.
In Stock: 27
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | AC |
| Number of Outputs | 1 |
| AC Voltage - Input | 85 ~ 264 VAC |
| DC Voltage - Input (Min) | - |
| DC Voltage - Input (Max) | - |
| Voltage - Output 1 | 48V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 1.25A |
| Power (Watts) | 60W |
| Voltage - Isolation | 4 kV |
| Applications | ITE (Commercial) |
| Efficiency | 91% |
| Operating Temperature | -30°C ~ 70°C (With Derating) |
| Features | Adjustable Output, Universal Input |
| Size / Dimension | 2.28" L x 2.05" W x 3.65" H (58.0mm x 52.0mm x 92.7mm) |
| Approval Agency | TUV, UL |
| Standard Number | 62368-1 |
Submit your RFQ for DRC60US48 and get a quote within 24 hours.
