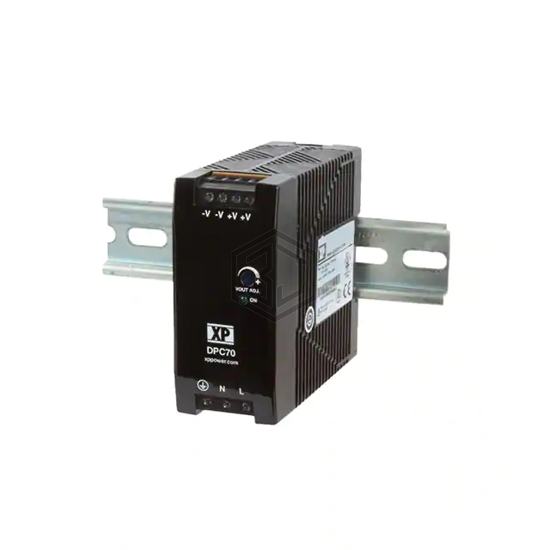

AC/DC CONVERTER 48V 70W
DPC70US48 is a Industrial, DIN Rail Power Supplies manufactured by XP Power. AC/DC CONVERTER 48V 70W. Key specifications: operating temperature -25°C ~ 70°C (With Derating), current - output (max) 1.5A, size / dimension 3.94" L x 1.59" W x 3.60" H (100.0mm x 40.5mm x 90.0mm), number of outputs 1.
In Stock: 48
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | AC |
| Number of Outputs | 1 |
| AC Voltage - Input | 85 ~ 264 VAC |
| DC Voltage - Input (Min) | - |
| DC Voltage - Input (Max) | - |
| Voltage - Output 1 | 48V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 1.5A |
| Power (Watts) | 70W |
| Voltage - Isolation | 3 kV |
| Applications | ITE (Commercial) |
| Efficiency | 89% |
| Operating Temperature | -25°C ~ 70°C (With Derating) |
| Features | Adjustable Output, Universal Input |
| Size / Dimension | 3.94" L x 1.59" W x 3.60" H (100.0mm x 40.5mm x 90.0mm) |
| Approval Agency | CE |
| Standard Number | 62368-1 |
Submit your RFQ for DPC70US48 and get a quote within 24 hours.
