AC/DC CONVERTER 24V 960W

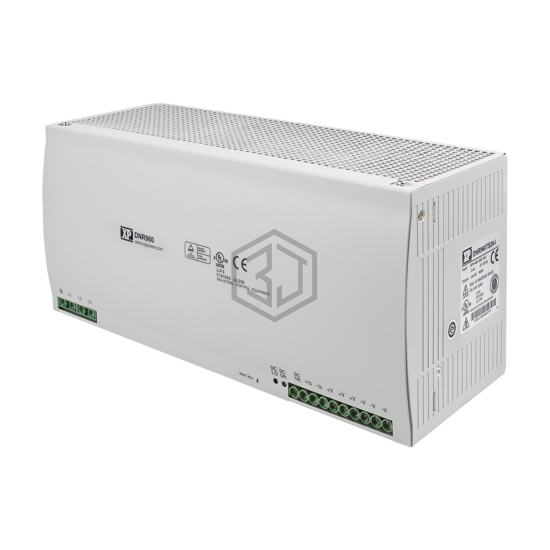

DNR960TS24-I is a Industrial, DIN Rail Power Supplies manufactured by XP Power. AC/DC CONVERTER 24V 960W. Key specifications: operating temperature -40°C ~ 70°C (With Derating), current - output (max) 40A, size / dimension 4.39" L x 10.86" W x 4.96" H (111.3mm x 275.7mm x 125.9mm), number of outputs 1.
In Stock: 1
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Input Type | AC |
| Number of Outputs | 1 |
| AC Voltage - Input | 340 ~ 575 VAC (3 Phase) |
| DC Voltage - Input (Min) | - |
| DC Voltage - Input (Max) | - |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | -12V |
| Current - Output (Max) | 40A |
| Power (Watts) | 960W |
| Voltage - Isolation | 3 kV |
| Applications | Hazardous Locations, Industrial, ITE (Commercial) |
| Efficiency | 92% |
| Operating Temperature | -40°C ~ 70°C (With Derating) |
| Features | Adjustable Output, Load Sharing |
| Size / Dimension | 4.39" L x 10.86" W x 4.96" H (111.3mm x 275.7mm x 125.9mm) |
| Approval Agency | - |
| Standard Number | 62368-1 |
Submit your RFQ for DNR960TS24-I and get a quote within 24 hours.
