AC/DC CONVERTER 12V 120W

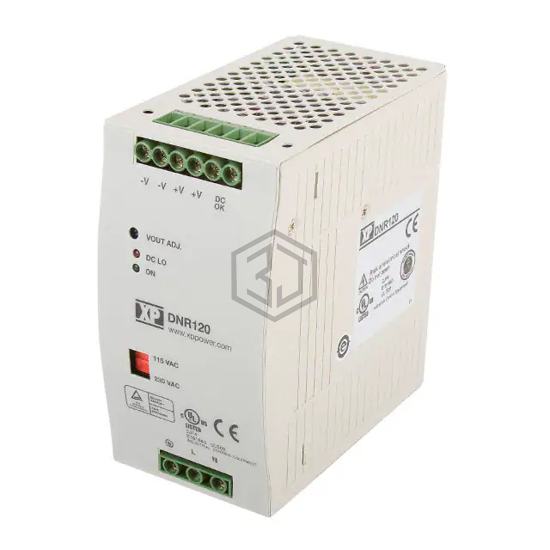

DNR120AS12-I is a Industrial, DIN Rail Power Supplies manufactured by XP Power. AC/DC CONVERTER 12V 120W. Key specifications: operating temperature -35°C ~ 70°C (With Derating), current - output (max) 10A, size / dimension 4.57" L x 2.50" W x 4.92" H (116.0mm x 63.5mm x 125.0mm), number of outputs 1.
In Stock: 1,030
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | AC |
| Number of Outputs | 1 |
| AC Voltage - Input | 90 ~ 132 VAC, 180 ~ 264 VAC |
| DC Voltage - Input (Min) | - |
| DC Voltage - Input (Max) | - |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | -12V |
| Current - Output (Max) | 10A |
| Power (Watts) | 120W |
| Voltage - Isolation | 3 kV |
| Applications | Hazardous Locations, Industrial, ITE (Commercial) |
| Efficiency | 72% |
| Operating Temperature | -35°C ~ 70°C (With Derating) |
| Features | Adjustable Output, Universal Input |
| Size / Dimension | 4.57" L x 2.50" W x 4.92" H (116.0mm x 63.5mm x 125.0mm) |
| Approval Agency | CE |
| Standard Number | 62368-1 |
