DC-DC DIN RAIL, 40W, 3:1 INPUT

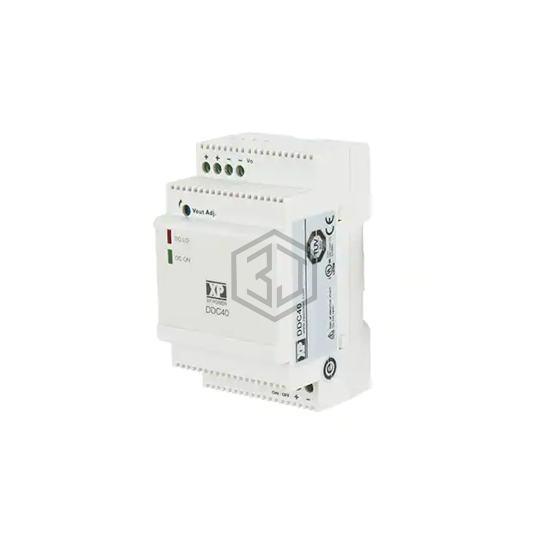

DDC4024S05 is a Industrial, DIN Rail Power Supplies manufactured by XP Power. DC-DC DIN RAIL, 40W, 3:1 INPUT. Key specifications: operating temperature -40°C ~ 70°C (With Derating), current - output (max) 6A, size / dimension 2.22" L x 2.09" W x 3.58" H (56.0mm x 53.0mm x 91.0mm), number of outputs 1.
In Stock: 96
| Attribute | Value |
|---|---|
| Product Status | Active |
| Input Type | DC |
| Number of Outputs | 1 |
| AC Voltage - Input | - |
| DC Voltage - Input (Min) | 10V |
| DC Voltage - Input (Max) | 32V |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output (Max) | 6A |
| Power (Watts) | 30W |
| Voltage - Isolation | 1.5 kV |
| Applications | Industrial, ITE (Commercial) |
| Efficiency | 81% |
| Operating Temperature | -40°C ~ 70°C (With Derating) |
| Features | Adjustable Output, Remote On/Off |
| Size / Dimension | 2.22" L x 2.09" W x 3.58" H (56.0mm x 53.0mm x 91.0mm) |
| Approval Agency | CB, TUV, UL |
| Standard Number | 62368-1 |
