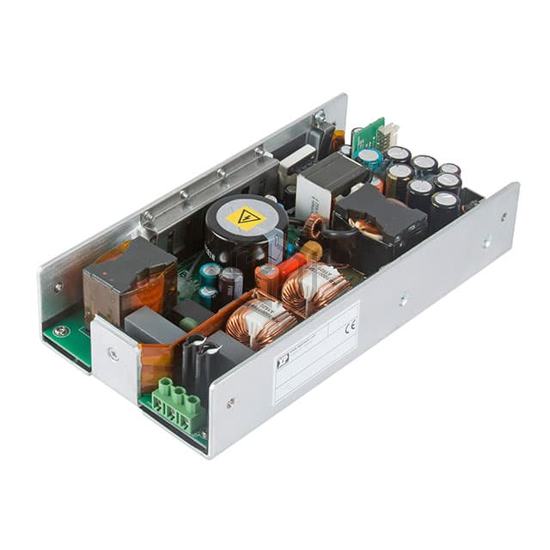

AC/DC CONVERTER 48V 250W
CMP250PS48 is a AC DC Converters manufactured by XP Power. AC/DC CONVERTER 48V 250W. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 70°C (With Derating), voltage - input 80 ~ 264 VAC, size / dimension 7.50" L x 4.00" W x 1.57" H (190.6mm x 101.6mm x 39.9mm).
In Stock: 4
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Open Frame |
| Number of Outputs | 1 |
| Voltage - Input | 80 ~ 264 VAC |
| Voltage - Output 1 | 48V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 5.2 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 250W |
| Applications | ITE (Commercial), Medical |
| Voltage - Isolation | 4 kV |
| Efficiency | 89% |
| Operating Temperature | -40°C ~ 70°C (With Derating) |
| Features | Adjustable Output, Load Sharing, Remote Sense, Standby Output, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 7.50" L x 4.00" W x 1.57" H (190.6mm x 101.6mm x 39.9mm) |
| Approval Agency | - |
| Standard Number | 62368-1 |
Submit your RFQ for CMP250PS48 and get a quote within 24 hours.
