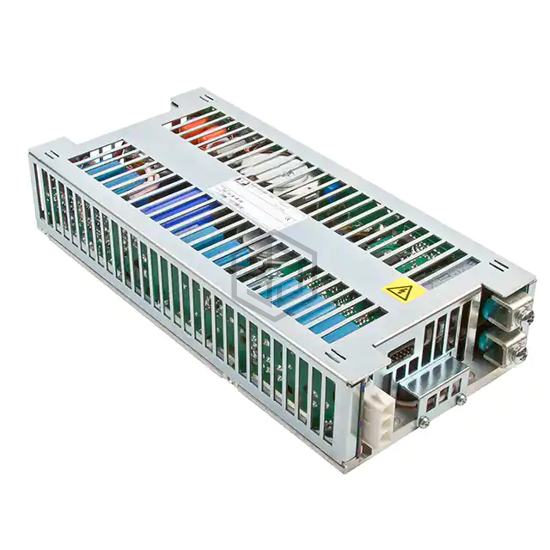

AC/DC CONVERTER 24V 411W
CCH400PS24 is a AC DC Converters manufactured by XP Power. AC/DC CONVERTER 24V 411W. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - input 90 ~ 264 VAC, size / dimension 8.43" L x 4.02" W x 1.69" H (214.1mm x 102.1mm x 42.9mm).
In Stock: 116
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Enclosed |
| Number of Outputs | 1 |
| Voltage - Input | 90 ~ 264 VAC |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 17 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 411W |
| Applications | ITE (Commercial) |
| Voltage - Isolation | 3 kV |
| Efficiency | 90% |
| Operating Temperature | -40°C ~ 85°C |
| Features | Adjustable Output, Load Sharing, PFC, Remote On/Off, Standby Output, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 8.43" L x 4.02" W x 1.69" H (214.1mm x 102.1mm x 42.9mm) |
| Approval Agency | CB, TUV, UL |
| Standard Number | 62368-1 |
Submit your RFQ for CCH400PS24 and get a quote within 24 hours.
