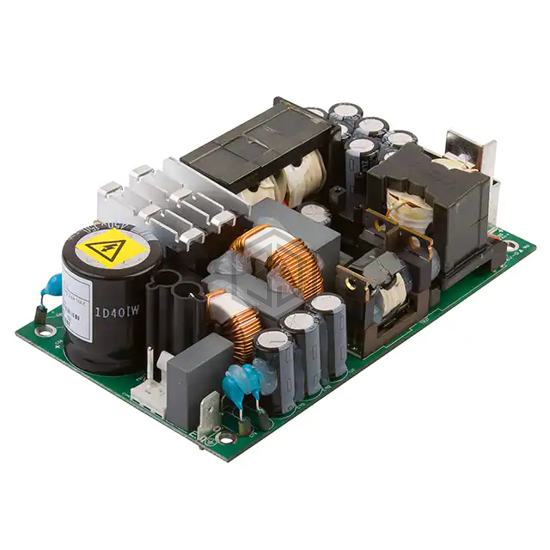

AC/DC CONVERTER 28V 199W
CCB200PS28 is a AC DC Converters manufactured by XP Power. AC/DC CONVERTER 28V 199W. Key specifications: mounting type Chassis Mount, operating temperature -20°C ~ 85°C (With Derating), voltage - input 80 ~ 264 VAC, size / dimension 5.00" L x 3.00" W x 1.43" H (127.0mm x 76.2mm x 36.3mm).
In Stock: 52
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Open Frame |
| Number of Outputs | 1 |
| Voltage - Input | 80 ~ 264 VAC |
| Voltage - Output 1 | 28V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 7.1 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 199W |
| Applications | ITE (Commercial), Medical |
| Voltage - Isolation | 4 kV |
| Efficiency | 95% |
| Operating Temperature | -20°C ~ 85°C (With Derating) |
| Features | Adjustable Output, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 5.00" L x 3.00" W x 1.43" H (127.0mm x 76.2mm x 36.3mm) |
| Approval Agency | CB, TUV, UL |
| Standard Number | 62368-1 |
