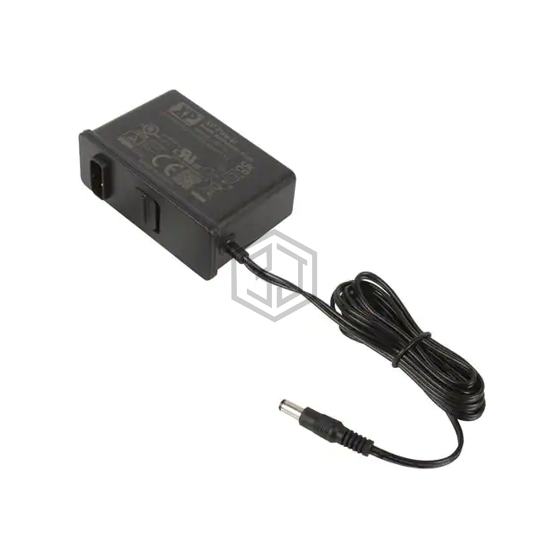

AC/DC WALL MOUNT ADAPTER 9V 21W
AMF24US09 is a AC DC Desktop, Wall Adapters manufactured by XP Power. AC/DC WALL MOUNT ADAPTER 9V 21W. Key specifications: operating temperature 0°C ~ 60°C, voltage - input 80 ~ 264 VAC, current - output (max) 2.33A, size / dimension 3.56" L x 1.32" W x 2.30" H (90.4mm x 33.5mm x 58.4mm).
In Stock: 50
| Attribute | Value |
|---|---|
| Product Status | Active |
| Region Utilized | International |
| Form | Wall Mount (Class II) |
| Input Type | Multi-Blade (Sold Separately) |
| Voltage - Input | 80 ~ 264 VAC |
| Voltage - Output | 9V |
| Current - Output (Max) | 2.33A |
| Power (Watts) | 21 W |
| No Load Power Consumption | - |
| Polarization | Positive Center |
| Applications | ITE (Commercial), Medical |
| Efficiency | Level VI |
| Operating Temperature | 0°C ~ 60°C |
| Output Connector | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11mm |
| Cord Length | - |
| Input Connector | Multi-Blade (Sold Separately) |
| Features | IP22 |
| Size / Dimension | 3.56" L x 1.32" W x 2.30" H (90.4mm x 33.5mm x 58.4mm) |
| Approval Agency | CB, CE, CSA, UKCA, UL |
| Standard Number | 60601-1; 62368-1 |
