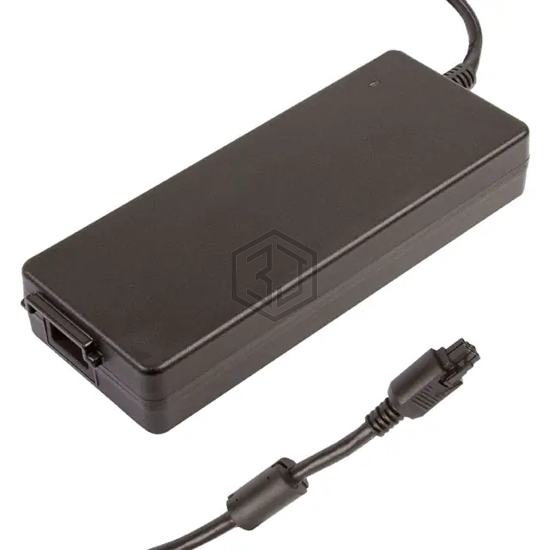

AHM250PS24T - XP Power - AC DC Desktop, Wall Adapters

AHM250PS24T

XP Power

AC/DC DESKTOP ADAPTER 24V 250W

AHM250PS24T is a AC DC Desktop, Wall Adapters manufactured by XP Power. AC/DC DESKTOP ADAPTER 24V 250W. Key specifications: operating temperature 0°C ~ 60°C, voltage - input 80 ~ 264 VAC, current - output (max) 10.41A, size / dimension 8.80" L x 3.48" W x 1.45" H (223.0mm x 88.5mm x 37.0mm).

In Stock: 6,208

Product Attributes

AttributeValue
Product StatusDiscontinued at Digi-Key
Region UtilizedInternational
FormDesktop (Class I)
Input TypeCord (Sold Separately)
Voltage - Input80 ~ 264 VAC
Voltage - Output24V
Current - Output (Max)10.41A
Power (Watts)250 W
No Load Power Consumption500mW (Max)
Polarization-
ApplicationsITE (Commercial), Medical
EfficiencyLevel V
Operating Temperature0°C ~ 60°C
Output ConnectorRectangular, 6 Position
Cord Length35.4" (0.9m)
Input ConnectorIEC 320-C14
Features-
Size / Dimension8.80" L x 3.48" W x 1.45" H (223.0mm x 88.5mm x 37.0mm)
Approval AgencyCB, TUV, UL
Standard Number60601-1; 62368-1

Frequently Asked Questions

AHM250PS24T is a AC DC Desktop, Wall Adapters manufactured by XP Power. AC/DC DESKTOP ADAPTER 24V 250W

The operating temperature range of AHM250PS24T is 0°C ~ 60°C.

The supply voltage of AHM250PS24T is 80 ~ 264 VAC.

The current rating of AHM250PS24T is 10.41A.

The efficiency of AHM250PS24T is Level V.
