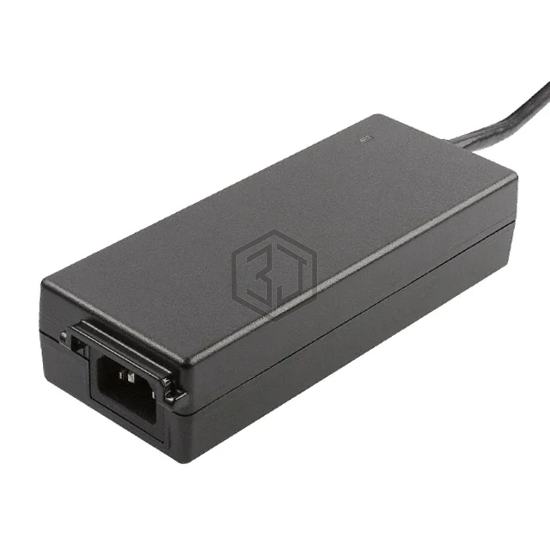

AC/DC DESKTOP ADAPTER 24V 180W
AHM180PS24 is a AC DC Desktop, Wall Adapters manufactured by XP Power. AC/DC DESKTOP ADAPTER 24V 180W. Key specifications: operating temperature 0°C ~ 60°C, voltage - input 80 ~ 264 VAC, current - output (max) 7.5A, size / dimension 7.87" L x 3.15" W x 1.46" H (200.0mm x 80.0mm x 37.0mm).
In Stock: 8,942
| Attribute | Value |
|---|---|
| Product Status | Discontinued at Digi-Key |
| Region Utilized | International |
| Form | Desktop (Class I) |
| Input Type | Cord (Sold Separately) |
| Voltage - Input | 80 ~ 264 VAC |
| Voltage - Output | 24V |
| Current - Output (Max) | 7.5A |
| Power (Watts) | 180 W |
| No Load Power Consumption | 500mW (Max) |
| Polarization | - |
| Applications | ITE (Commercial), Medical |
| Efficiency | Level V |
| Operating Temperature | 0°C ~ 60°C |
| Output Connector | Power DIN, 4 Pin |
| Cord Length | 35.4" (0.9m) |
| Input Connector | IEC 320-C14 |
| Features | - |
| Size / Dimension | 7.87" L x 3.15" W x 1.46" H (200.0mm x 80.0mm x 37.0mm) |
| Approval Agency | CB, TUV, UL |
| Standard Number | 60601-1; 62368-1 |
