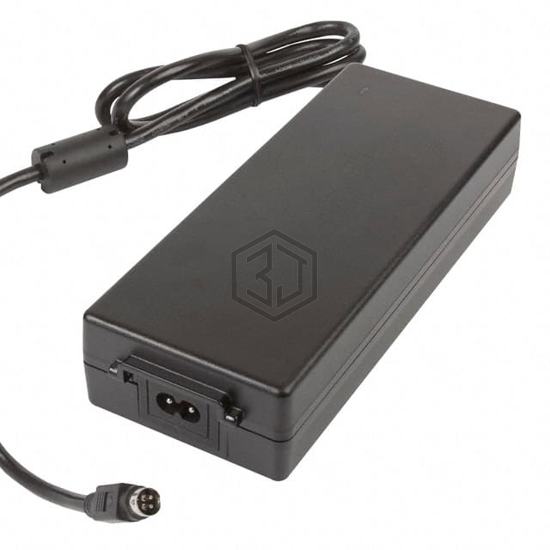

AHM150PS24C2-8 - XP Power - AC DC Desktop, Wall Adapters

AHM150PS24C2-8

XP Power

AC/DC DESKTOP ADAPTER 24V 150W

AHM150PS24C2-8 is a AC DC Desktop, Wall Adapters manufactured by XP Power. AC/DC DESKTOP ADAPTER 24V 150W. Key specifications: operating temperature 0°C ~ 60°C, voltage - input 80 ~ 264 VAC, current - output (max) 6.25A, size / dimension 7.80" L x 3.15" W x 1.45" H (200.0mm x 80.0mm x 37.0mm).

In Stock: 1,841

Product Attributes

AttributeValue
Product StatusDiscontinued at Digi-Key
Region UtilizedInternational
FormDesktop (Class II)
Input TypeCord (Sold Separately)
Voltage - Input80 ~ 264 VAC
Voltage - Output24V
Current - Output (Max)6.25A
Power (Watts)150 W
No Load Power Consumption500mW (Max)
Polarization-
ApplicationsITE (Commercial), Medical
EfficiencyLevel V
Operating Temperature0°C ~ 60°C
Output ConnectorPower DIN, 4 Pin
Cord Length35.4" (0.9m)
Input ConnectorIEC 320-C8
Features-
Size / Dimension7.80" L x 3.15" W x 1.45" H (200.0mm x 80.0mm x 37.0mm)
Approval AgencyCB, TUV, UL
Standard Number60601-1; 62368-1

Frequently Asked Questions

AHM150PS24C2-8 is a AC DC Desktop, Wall Adapters manufactured by XP Power. AC/DC DESKTOP ADAPTER 24V 150W

The operating temperature range of AHM150PS24C2-8 is 0°C ~ 60°C.

The supply voltage of AHM150PS24C2-8 is 80 ~ 264 VAC.

The current rating of AHM150PS24C2-8 is 6.25A.

The efficiency of AHM150PS24C2-8 is Level V.
