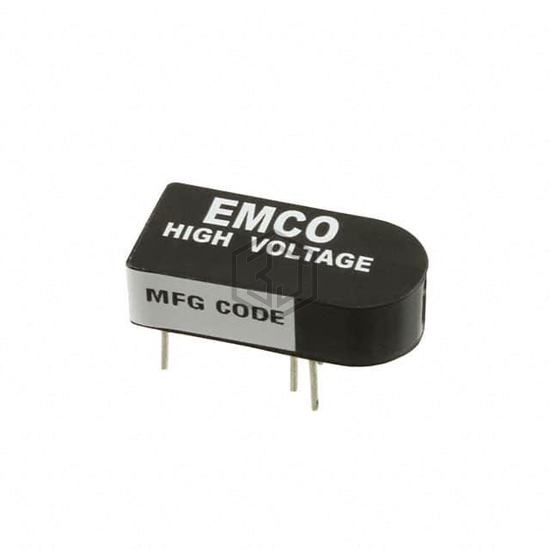

DC DC CONVERTER 500V 1.5W
AH05P-12 is a DC DC Converters manufactured by XP Power. DC DC CONVERTER 500V 1.5W. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 75°C, package / case 5-DIP Module, current - output (max) 3mA.
In Stock: 3
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | High Voltage - Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 0.7V |
| Voltage - Input (Max) | 12V |
| Voltage - Output 1 | 500V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 3mA |
| Power (Watts) | 1.5 W |
| Voltage - Isolation | 500 V |
| Applications | ITE (Commercial) |
| Features | Proportional Output |
| Operating Temperature | -25°C ~ 75°C |
| Efficiency | - |
| Mounting Type | Through Hole |
| Package / Case | 5-DIP Module |
| Size / Dimension | 0.92" L x 0.45" W x 0.25" H (23.4mm x 11.4mm x 6.4mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CE, cURus |
| Standard Number | 62368-1 |
Submit your RFQ for AH05P-12 and get a quote within 24 hours.
