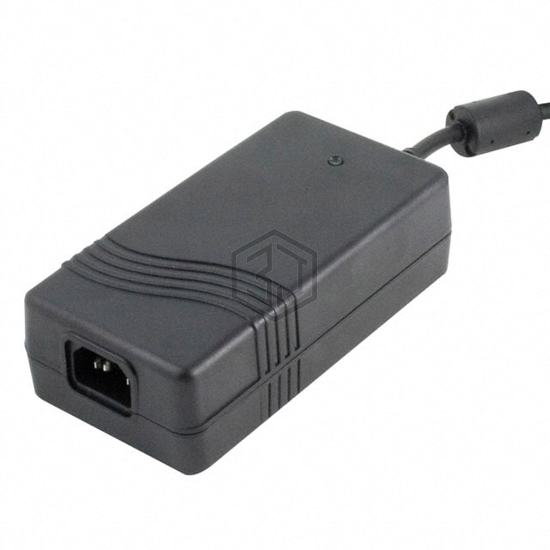

AC/DC DESKTOP ADAPTER 24V 80W
AEL80US24 is a AC DC Desktop, Wall Adapters manufactured by XP Power. AC/DC DESKTOP ADAPTER 24V 80W. Key specifications: operating temperature -20°C ~ 60°C, voltage - input 90 ~ 264 VAC, current - output (max) 3.33A, size / dimension 5.75" L x 2.99" W x 1.69" H (146.0mm x 76.0mm x 43.0mm).
In Stock: 7,776
| Attribute | Value |
|---|---|
| Product Status | Discontinued at Digi-Key |
| Region Utilized | International |
| Form | Desktop (Class I) |
| Input Type | Cord (Sold Separately) |
| Voltage - Input | 90 ~ 264 VAC |
| Voltage - Output | 24V |
| Current - Output (Max) | 3.33A |
| Power (Watts) | 80 W |
| No Load Power Consumption | 500mW (Max) |
| Polarization | - |
| Applications | ITE (Commercial) |
| Efficiency | Level V |
| Operating Temperature | -20°C ~ 60°C |
| Output Connector | DIN, 5 Pin |
| Cord Length | 48" (1.22m) |
| Input Connector | IEC 320-C14 |
| Features | - |
| Size / Dimension | 5.75" L x 2.99" W x 1.69" H (146.0mm x 76.0mm x 43.0mm) |
| Approval Agency | CB, TUV, UL |
| Standard Number | - |
Submit your RFQ for AEL80US24 and get a quote within 24 hours.
