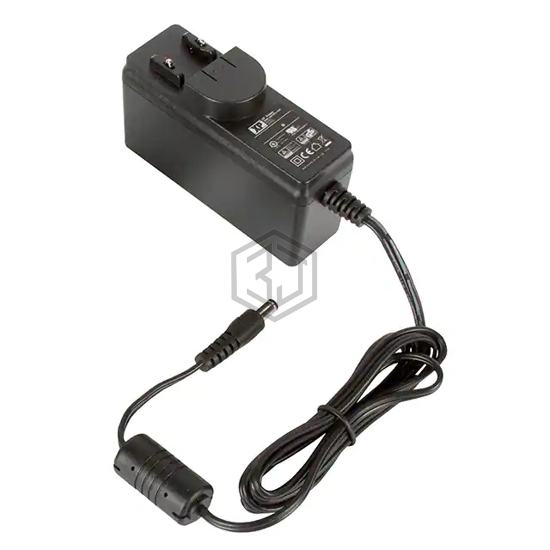

AC/DC WALL MOUNT ADAPTER 30V 36W
ACM36US30 is a AC DC Desktop, Wall Adapters manufactured by XP Power. AC/DC WALL MOUNT ADAPTER 30V 36W. Key specifications: operating temperature 0°C ~ 60°C, voltage - input 90 ~ 264 VAC, current - output (max) 1.2A, size / dimension 3.93" L x 1.29" W x 2.34" H (96.7mm x 33.0mm x 59.5mm).
In Stock: 71
| Attribute | Value |
|---|---|
| Product Status | Active |
| Region Utilized | International |
| Form | Wall Mount (Class II) |
| Input Type | Multi-Blade (Sold Separately) |
| Voltage - Input | 90 ~ 264 VAC |
| Voltage - Output | 30V |
| Current - Output (Max) | 1.2A |
| Power (Watts) | 36 W |
| No Load Power Consumption | 75mW (Max) |
| Polarization | - |
| Applications | ITE (Commercial), Medical |
| Efficiency | Level VI, CoC Tier 2 |
| Operating Temperature | 0°C ~ 60°C |
| Output Connector | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm |
| Cord Length | 59" (1.50m) |
| Input Connector | Multi-Blade (Sold Separately) |
| Features | - |
| Size / Dimension | 3.93" L x 1.29" W x 2.34" H (96.7mm x 33.0mm x 59.5mm) |
| Approval Agency | CB, CE, CSA, TUV, UL |
| Standard Number | 60601-1; 62368-1 |
