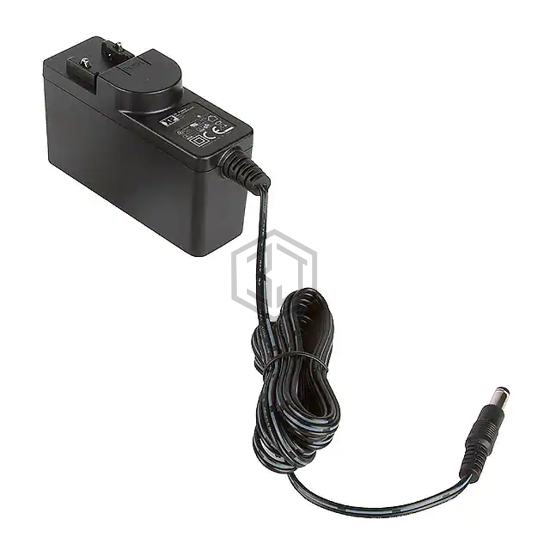

AC/DC WALL MOUNT ADAPTER 15V 19W
ACM18US15 is a AC DC Desktop, Wall Adapters manufactured by XP Power. AC/DC WALL MOUNT ADAPTER 15V 19W. Key specifications: operating temperature 0°C ~ 60°C, voltage - input 90 ~ 264 VAC, current - output (max) 1.25A, size / dimension 3.46" L x 1.18" W x 1.95" H (88.0mm x 30.0mm x 49.5mm).
In Stock: 5
| Attribute | Value |
|---|---|
| Product Status | Active |
| Region Utilized | International |
| Form | Wall Mount (Class II) |
| Input Type | Multi-Blade (Sold Separately) |
| Voltage - Input | 90 ~ 264 VAC |
| Voltage - Output | 15V |
| Current - Output (Max) | 1.25A |
| Power (Watts) | 19 W |
| No Load Power Consumption | 75mW (Max) |
| Polarization | Positive Center |
| Applications | ITE (Commercial), Medical |
| Efficiency | Level VI, CoC Tier 2 |
| Operating Temperature | 0°C ~ 60°C |
| Output Connector | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm |
| Cord Length | 70.9" (1.80m) |
| Input Connector | Multi-Blade |
| Features | - |
| Size / Dimension | 3.46" L x 1.18" W x 1.95" H (88.0mm x 30.0mm x 49.5mm) |
| Approval Agency | CB, CE |
| Standard Number | 60601-1; 62368-1 |
Submit your RFQ for ACM18US15 and get a quote within 24 hours.
