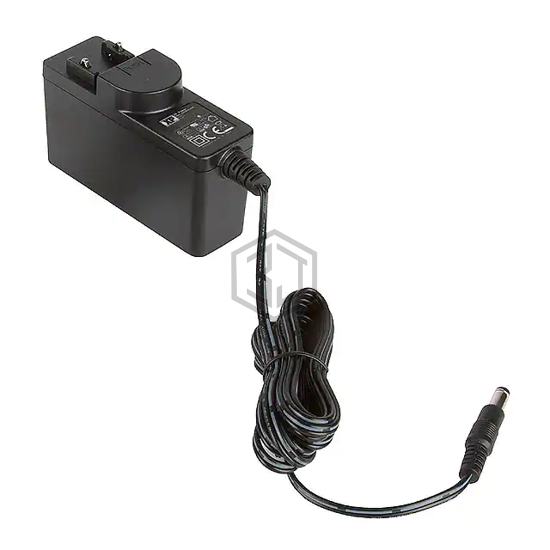

AC/DC WALL MOUNT ADAPTER 9V 12W
ACM12US09 is a AC DC Desktop, Wall Adapters manufactured by XP Power. AC/DC WALL MOUNT ADAPTER 9V 12W. Key specifications: operating temperature -5°C ~ 60°C, voltage - input 90 ~ 264 VAC, current - output (max) 1.33A, size / dimension 2.99" L x 1.19" W x 1.90" H (75.9mm x 30.2mm x 48.3mm).
In Stock: 67
| Attribute | Value |
|---|---|
| Product Status | Active |
| Region Utilized | International |
| Form | Wall Mount (Class II) |
| Input Type | Multi-Blade (Sold Separately) |
| Voltage - Input | 90 ~ 264 VAC |
| Voltage - Output | 9V |
| Current - Output (Max) | 1.33A |
| Power (Watts) | 12 W |
| No Load Power Consumption | 75mW (Max) |
| Polarization | - |
| Applications | ITE (Commercial), Medical |
| Efficiency | Level VI, CoC Tier 2 |
| Operating Temperature | -5°C ~ 60°C |
| Output Connector | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm |
| Cord Length | 59" (1.50m) |
| Input Connector | Multi-Blade (Sold Separately) |
| Features | - |
| Size / Dimension | 2.99" L x 1.19" W x 1.90" H (75.9mm x 30.2mm x 48.3mm) |
| Approval Agency | CB, CE, TUV, UL |
| Standard Number | 60601-1; 62368-1 |
