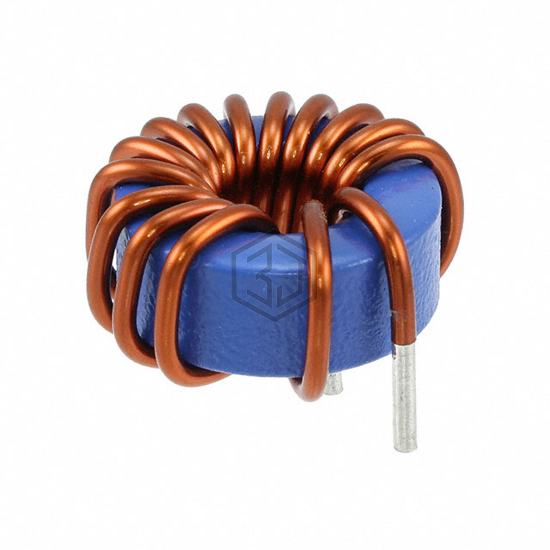

FIXED IND 22UH 18A 4.5 MOHM TH
S14100034 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 22UH 18A 4.5 MOHM TH. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, package / case Radial, Horizontal (Open), current rating (amps) 18 A.
In Stock: 1
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Toroidal |
| Material - Core | Ferrite |
| Inductance | 22 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 18 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 4.5mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Horizontal (Open) |
| Supplier Device Package | - |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Height - Seated (Max) | 0.689" (17.50mm) |
Submit your RFQ for S14100034 and get a quote within 24 hours.
