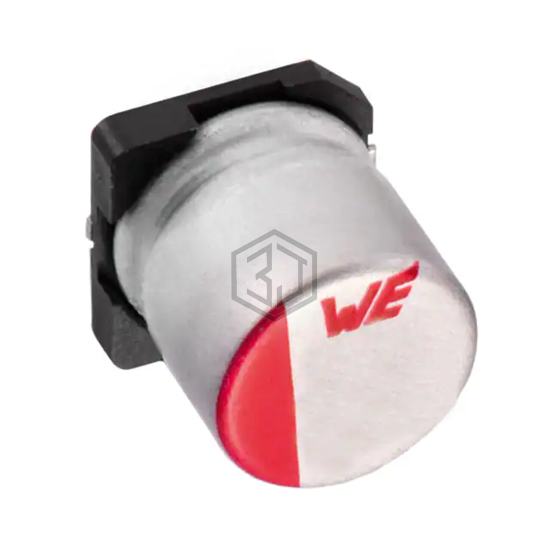

CAP ALUM POLY 12UF 20% 100V SMD
875115957002 is a Aluminum - Polymer Capacitors manufactured by Würth Elektronik. CAP ALUM POLY 12UF 20% 100V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can - SMD.
In Stock: 704
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 12 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 45mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | 95 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.9 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.425" (10.80mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PCV2A120MCL1GS | Nichicon | CAP ALUM POLY 12UF 20% 100V SMD | 100% | View |
| 875076155002 | Würth Elektronik | CAP ALUM POLY 12UF 20% 80V SMD | 91% | View |
| PCR2A120MCL1GS | Nichicon | CAP ALUM POLY 12UF 20% 100V SMD | 85% | View |
| RKS1J120MCNAHGGS | Nichicon | CAP ALUM POLY 12UF 20% 63V SMD | 63% | View |
| RPS1H120MCN1GS | Nichicon | CAP ALUM POLY 12UF 20% 50V SMD | 62% | View |
| PCM1K120MCL1GS | Nichicon | CAP ALUM POLY 12UF 20% 80V SMD | 62% | View |
Submit your RFQ for 875115957002 and get a quote within 24 hours.
