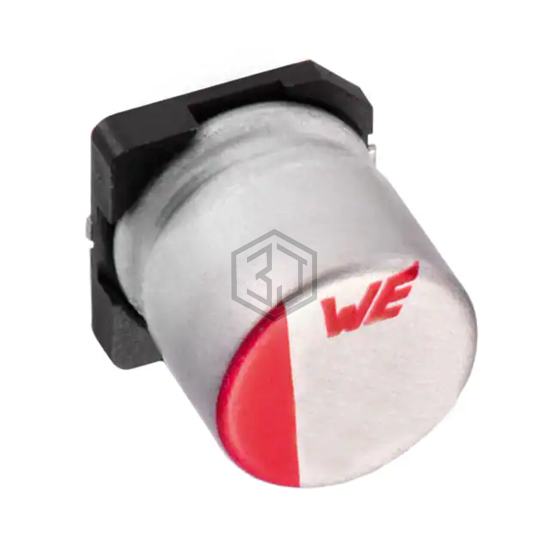

CAP ALUM POLY 56UF 20% 35V SMD
875115650005 is a Aluminum - Polymer Capacitors manufactured by Würth Elektronik. CAP ALUM POLY 56UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 7,140
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 56 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 40mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | 110 mA @ 120 Hz |
| Ripple Current @ High Frequency | 2.2 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL218597004E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM POLY 56UF 20% 35V SMD | 98% | View |
| MAL218097601E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM POLY 56UF 20% 25V SMD | 78% | View |
| 94SVP566X0016E7 | Vishay Sprague | CAP ALUM POLY 56UF 20% 16V SMD | 65% | View |
| MAL218497405E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM POLY 47UF 20% 10V SMD | 61% | View |
| PVM-10V470ME60E-R2 | Elna America | CAP ALUM POLY 47UF 20% 10V SMD | 61% | View |
| PCV1D560MCL2GS | Nichicon | CAP ALUM POLY 56UF 20% 20V SMD | 60% | View |
