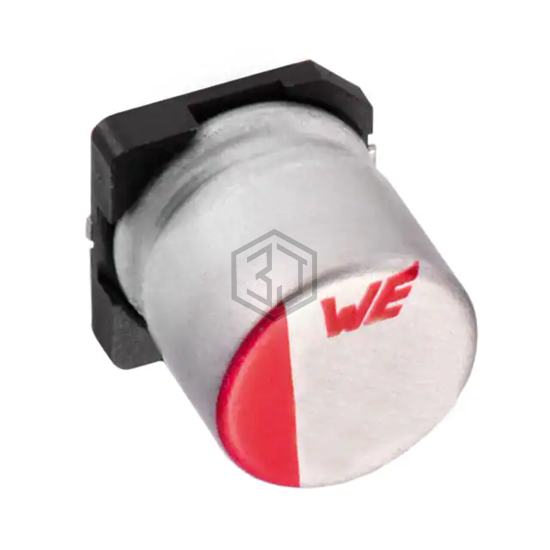

CAP ALUM POLY 18UF 20% 35V SMD
875115645010 is a Aluminum - Polymer Capacitors manufactured by Würth Elektronik. CAP ALUM POLY 18UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 1,976
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 18 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 60mOhm |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | 70 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.4 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PCV1V180MCL1GS | Nichicon | CAP ALUM POLY 18UF 20% 35V SMD | 86% | View |
| 50SVPF18M | Panasonic Electronic Components | CAP ALUM POLY 18UF 20% 50V SMD | 58% | View |
| 50SVPT18M | Panasonic Electronic Components | CAP ALUM POLY 18UF 20% 50V SMD | 58% | View |
| PCV2A180MCL1GS | Nichicon | CAP ALUM POLY 18UF 20% 100V SMD | 58% | View |
| 50SVT18M | Panasonic Electronic Components | CAP ALUM POLY 18UF 20% 50V SMD | 58% | View |
| 35SVPD18M | Panasonic Electronic Components | CAP ALUM POLY 18UF 20% 35V SMD | 55% | View |
