CAP ALUM POLY 22UF 20% 25V SMD

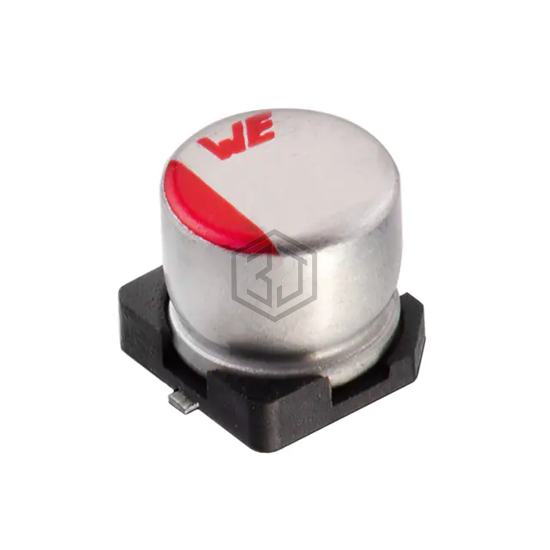

875105544003 is a Aluminum - Polymer Capacitors manufactured by Würth Elektronik. CAP ALUM POLY 22UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 2,478
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 30mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | 110 mA @ 120 Hz |
| Ripple Current @ High Frequency | 2.2 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.228" (5.80mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| RSS1E220MCN1GS | Nichicon | CAP ALUM POLY 22UF 20% 25V SMD | 83% | View |
| PCF1D220MCL4GB | Nichicon | CAP ALUM POLY 22UF 20% 20V SMD | 82% | View |
| A767KN226M1KLAE045 | KEMET | CAP ALUM POLY 22UF 20% 80V SMD | 77% | View |
| 100SXV18MX | Panasonic Electronic Components | CAP ALUM POLY 18UF 20% 100V SMD | 68% | View |
| OCV220M1CTR-0506S | SURGE | CAP ALUM POLY 22UF 20% 16V SMD | 58% | View |
| PCX1H220MCL1GS | Nichicon | CAP ALUM POLY 22UF 20% 50V SMD | 57% | View |
