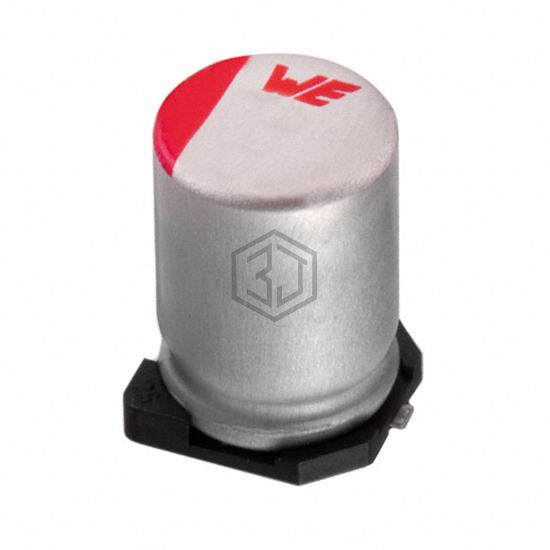

CAP ALUM POLY 680UF 20% 6.3V SMD
875075155008 is a Aluminum - Polymer Capacitors manufactured by Würth Elektronik. CAP ALUM POLY 680UF 20% 6.3V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can - SMD.
In Stock: 1,647
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | 8mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | 260 mA @ 120 Hz |
| Ripple Current @ High Frequency | 5.2 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.461" (11.70mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 4SVPA680M | Panasonic Electronic Components | CAP ALUM POLY 680UF 20% 4V SMD | 75% | View |
| APXA4R0ARA681MJ80G | United Chemi-Con | CAP ALUM POLY 680UF 20% 4V SMD | 74% | View |
| 687UVG2R5MFBJ | Cornell Dubilier / Illinois Capacitor | CAP ALUM POLY 680UF 20% 2.5V SMD | 72% | View |
| A765MU687M1ALAE013 | KEMET | CAP ALUM POLY 680UF 20% 10V SMD | 71% | View |
| RHA0G681MCN1GS | Nichicon | CAP ALUM POLY 680UF 20% 4V SMD | 70% | View |
| APXA2R5ARA681MHC0G | United Chemi-Con | CAP ALUM POLY 680UF 20% 2.5V SMD | 69% | View |
