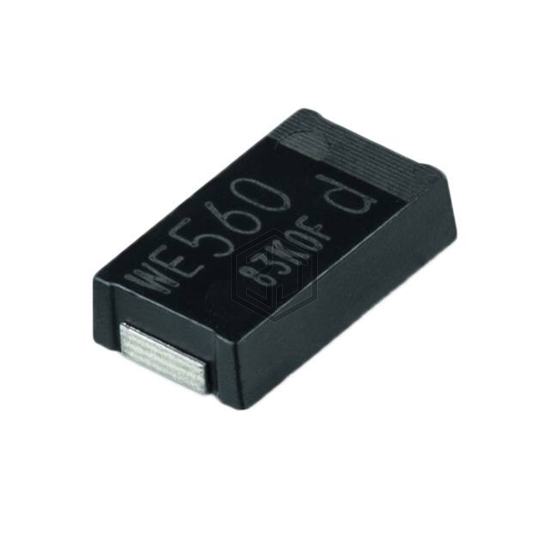

CAP ALUM POLY 560UF 20% 2V SMD
875016219007 is a Aluminum - Polymer Capacitors manufactured by Würth Elektronik. CAP ALUM POLY 560UF 20% 2V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 2 V, package / case 2917 (7343 Metric).
In Stock: 7,399
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 2 V |
| ESR (Equivalent Series Resistance) | 15mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 5.1 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.287" L x 0.169" W (7.30mm x 4.30mm) |
| Height - Seated (Max) | 0.079" (2.00mm) |
| Surface Mount Land Size | 0.287" L x 0.169" W (7.30mm x 4.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | 2917 (7343 Metric) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEF-CX0D561R | Panasonic Electronic Components | CAP ALUM POLY 560UF 20% 2V SMD | 100% | View |
| EEF-HX0D561R | Panasonic Electronic Components | CAP ALUM POLY 560UF 20% 2V SMD | 100% | View |
| A700X567M002ATE009 | KEMET | CAP ALUM POLYMR 560UF 20% 2V SMD | 99% | View |
| A700X567M2R5ATE006 | KEMET | CAP ALUM POLY 560UF 20% 2.5V SMD | 85% | View |
| EEF-LX0D561R4 | Panasonic Electronic Components | CAP ALUM POLY 560UF 20% 2V SMD | 83% | View |
| EEF-GX0D561R | Panasonic Electronic Components | CAP ALUM POLY 560UF 20% 2V SMD | 77% | View |
