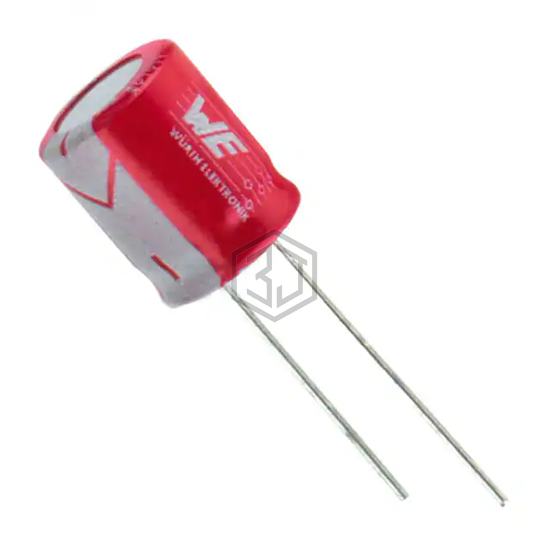

CAP ALUM POLY 120UF 20% 35V T/H
870235675006 is a Aluminum - Polymer Capacitors manufactured by Würth Elektronik. CAP ALUM POLY 120UF 20% 35V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 7,275
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 120 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 18mOhm |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | 200 mA @ 120 Hz |
| Ripple Current @ High Frequency | 4 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 20SEPF120M+TSS | Panasonic Electronic Components | CAP ALUM POLY 120UF 20% 20V T/H | 72% | View |
| 20SEPF120M | Panasonic Electronic Components | CAP ALUM POLY 120UF 20% 20V T/H | 72% | View |
| APSG200ELL121MF05S | United Chemi-Con | CAP ALUM POLY 120UF 20% 20V T/H | 70% | View |
| PLX1E121MDL1 | Nichicon | CAP ALUM POLY 120UF 20% 25V T/H | 68% | View |
| PLF1D121MCL2 | Nichicon | CAP ALUM POLY 120UF 20% 20V T/H | 65% | View |
| 10SEP120M | Panasonic Electronic Components | CAP ALUM POLY 120UF 20% 10V T/H | 58% | View |
Submit your RFQ for 870235675006 and get a quote within 24 hours.
