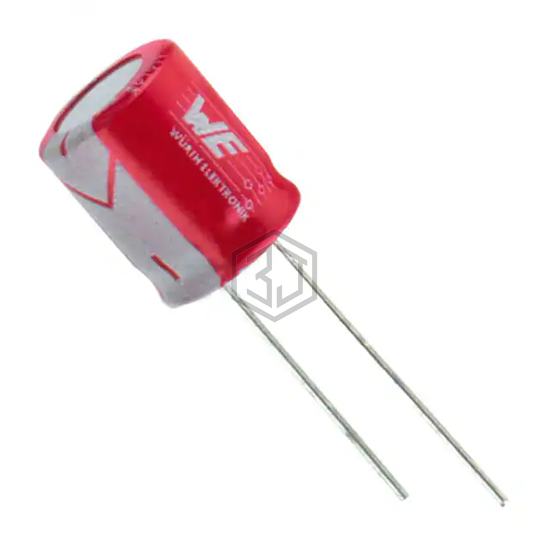

CAP ALUM POLY 180UF 20% 16V T/H
870235373002 is a Aluminum - Polymer Capacitors manufactured by Würth Elektronik. CAP ALUM POLY 180UF 20% 16V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 985
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 180 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 9mOhm |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | 280 mA @ 120 Hz |
| Ripple Current @ High Frequency | 5.6 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 870135374002 | Würth Elektronik | CAP ALUM POLY 180UF 20% 16V T/H | 100% | View |
| URP1C181MNN0811U | Chinsan (Elite) | CONDUCTIVE POLYMER SOLID CAPACIT | 95% | View |
| 16SEPC180M | Panasonic Electronic Components | CAP ALUM POLY 180UF 20% 16V T/H | 88% | View |
| RL81C181MDN1 | Nichicon | CAP ALUM POLY 180UF 20% 16V T/H | 83% | View |
| UPE1C181MP26305 | Chinsan (Elite) | CONDUCTIVE POLYMER SOLID CAPACIT | 83% | View |
| RNU1C181MDN1PX | Nichicon | CAP ALUM POLY 180UF 20% 16V T/H | 83% | View |
Submit your RFQ for 870235373002 and get a quote within 24 hours.
