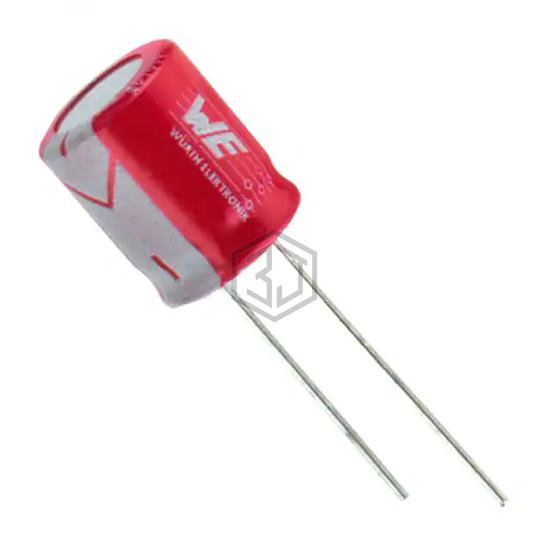

CAP ALUM POLY 680UF 20% 6.3V T/H
870235174004 is a Aluminum - Polymer Capacitors manufactured by Würth Elektronik. CAP ALUM POLY 680UF 20% 6.3V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 8,658
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | 7mOhm |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | 305 mA @ 120 Hz |
| Ripple Current @ High Frequency | 6.1 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| APS-6R3ELL681MJC5S | United Chemi-Con | CAP ALUM POLY 680UF 20% 6.3V T/H | 97% | View |
| A750KR687M0GAAE007 | KEMET | CAP ALUM POLY 680UF 20% 4V T/H | 86% | View |
| RNS0J681MDN1PH | Nichicon | CAP ALUM POLY 680UF 20% 6.3V T/H | 83% | View |
| RL80J681MDN1PX | Nichicon | CAP ALUM POLY 680UF 20% 6.3V T/H | 83% | View |
| RR70J681MDN1 | Nichicon | CAP ALUM POLY 680UF 20% 6.3V T/H | 83% | View |
| APSC100ELL681MJB5S | United Chemi-Con | CAP ALUM POLY 680UF 20% 10V T/H | 81% | View |
Submit your RFQ for 870235174004 and get a quote within 24 hours.
