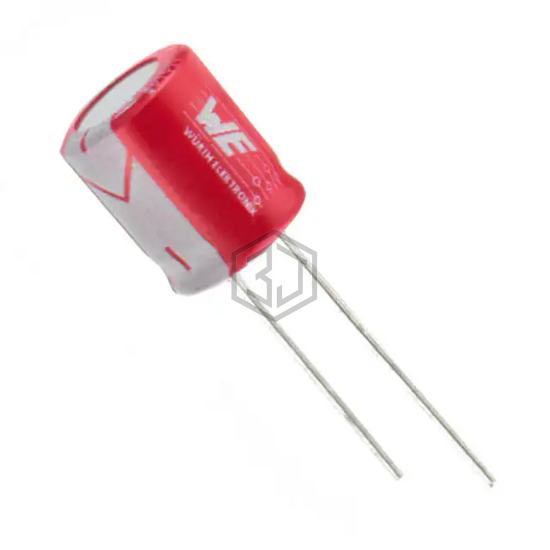

CAP ALUM POLY 560UF 20% 16V T/H
870135375008 is a Aluminum - Polymer Capacitors manufactured by Würth Elektronik. CAP ALUM POLY 560UF 20% 16V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 4,593
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 10mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | 96.45 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.929 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 870135375007 | Würth Elektronik | CAP ALUM POLY 470UF 20% 16V T/H | 93% | View |
| 16SEF560M | Panasonic Electronic Components | CAP ALUM POLY 560UF 20% 16V T/H | 90% | View |
| 20SEF560M | Panasonic Electronic Components | CAP ALUM POLY 560UF 20% 20V T/H | 87% | View |
| 25SEK470M | Panasonic Electronic Components | CAP ALUM POLY 470UF 20% 25V T/H | 71% | View |
| 687ALG025MGBJ | Cornell Dubilier / Illinois Capacitor | CAP ALUM POLY 680UF 20% 25V T/H | 63% | View |
| URH1C471MP51012EU | Chinsan (Elite) | CONDUCTIVE POLYMER SOLID CAPACIT | 55% | View |
Submit your RFQ for 870135375008 and get a quote within 24 hours.
