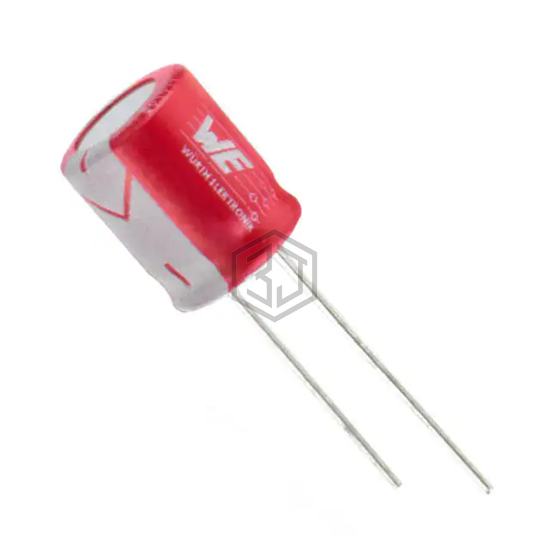

CAP ALUM POLY 10UF 20% 50V T/H
870055774001 is a Aluminum - Polymer Capacitors manufactured by Würth Elektronik. CAP ALUM POLY 10UF 20% 50V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 2,751
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | 45mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | 75 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.5 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.354" (9.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| A759EA106M1JAAE060 | KEMET | CAP ALUM POLY 10UF 20% 63V T/H | 88% | View |
| 25SEP10M+TSS | Panasonic Electronic Components | CAP ALUM POLY 10UF 20% 25V T/H | 79% | View |
| PLF1E100MCL2TD | Nichicon | CAP ALUM POLY 10UF 20% 25V T/H | 79% | View |
| 870055673001 | Würth Elektronik | CAP ALUM POLY 10UF 20% 35V T/H | 73% | View |
| PLF1E100MCL7 | Nichicon | CAP ALUM POLY 10UF 20% 25V T/H | 71% | View |
| A759KK106M1KAAE075 | KEMET | CAP ALUM POLY 10UF 20% 80V T/H | 64% | View |
Submit your RFQ for 870055774001 and get a quote within 24 hours.
