CAP ALUM 47UF 20% 50V SMD

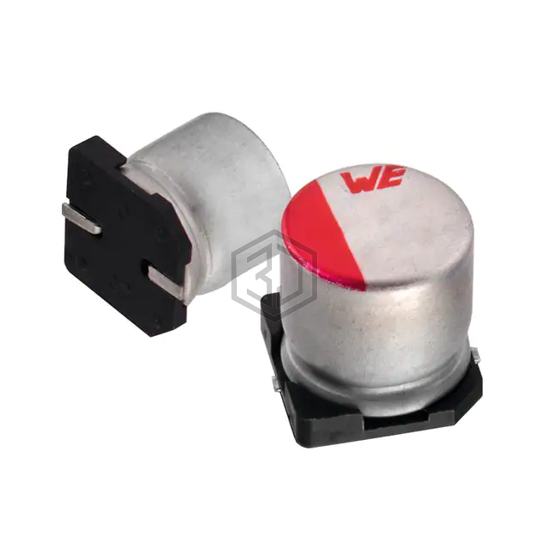

865250657012 is a Aluminum Electrolytic Capacitors manufactured by Würth Elektronik. CAP ALUM 47UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 1,675
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Bi-Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 100 mA @ 120 Hz |
| Ripple Current @ High Frequency | 150 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| VZH470M1HTR-0607S | Surge | CAP ALUM 50V POLAR | 89% | View |
| EEV-TA1H470P | Panasonic Electronic Components | CAP ALUM 47UF 20% 50V SMD | 84% | View |
| EDT476M035S9MAA | KEMET | CAP ALUM 47UF 20% 35V SMD | 78% | View |
| AFK476M06C12T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 47UF 20% 6.3V SMD | 73% | View |
| UUX1E470MCL6GS | Nichicon | CAP ALUM 47UF 20% 25V SMD | 70% | View |
| EMZJ160ADA470ME61G | United Chemi-Con | CAP ALUM 47UF 20% 16V SMD | 67% | View |
Submit your RFQ for 865250657012 and get a quote within 24 hours.
