CAP ALUM 22UF 20% 10V SMD

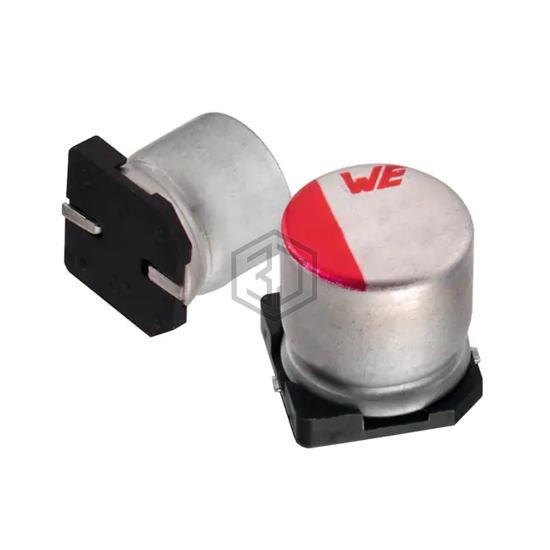

865250242002 is a Aluminum Electrolytic Capacitors manufactured by Würth Elektronik. CAP ALUM 22UF 20% 10V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 10 V, package / case Radial, Can - SMD.
In Stock: 5,571
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Bi-Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 33 mA @ 120 Hz |
| Ripple Current @ High Frequency | 49.5 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.217" (5.50mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UZP1A220MCL1GB | Nichicon | CAP ALUM 22UF 20% 10V SMD | 100% | View |
| AVS226M06B12T-F | Cornell Dubilier Knowles | CAP ALUM 22UF 20% 6.3V SMD | 83% | View |
| UUL1C220MCL1GS | Nichicon | CAP ALUM 22UF 20% 16V SMD | 81% | View |
| EDH226M010A9BAA | KEMET | CAP ALUM 22UF 20% 10V SMD | 78% | View |
| UUQ1V220MCL1GB | Nichicon | CAP ALUM 22UF 20% 35V SMD | 67% | View |
| UWT1V220MCL1GB | Nichicon | CAP ALUM 22UF 20% 35V SMD | 67% | View |
Submit your RFQ for 865250242002 and get a quote within 24 hours.
