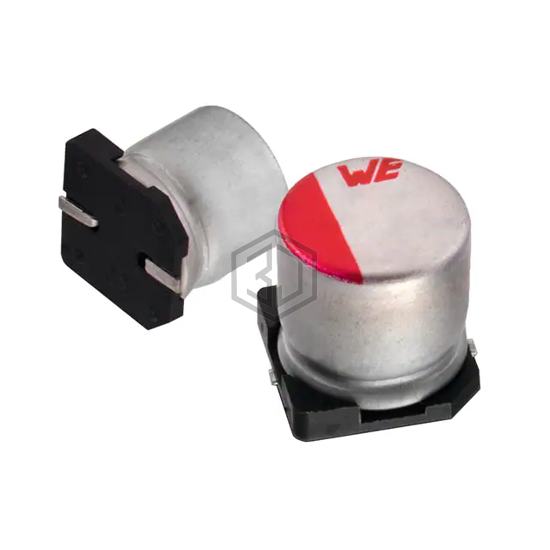

CAP ALUM 33UF 20% 50V SMD
865230653011 is a Aluminum Electrolytic Capacitors manufactured by Würth Elektronik. CAP ALUM 33UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 6,318
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 80 mA @ 120 Hz |
| Ripple Current @ High Frequency | 120 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UCD1H330MCS1GS | Nichicon | CAP ALUM 50V POLAR | 84% | View |
| ATB336M080 | Cornell Dubilier Knowles | CAP ALUM 33UF 20% 80V SMD | 81% | View |
| UUD0J330MCL1GS | Nichicon | CAP ALUM 33UF 20% 6.3V SMD | 72% | View |
| 336SMH025M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 33UF 20% 25V SMD | 69% | View |
| EEE-FKE330UAR | Panasonic Electronic Components | CAP ALUM 33UF 20% 25V SMD | 66% | View |
| EEE-FPA330UAR | Panasonic Electronic Components | CAP ALUM 33UF 20% 10V SMD | 66% | View |
