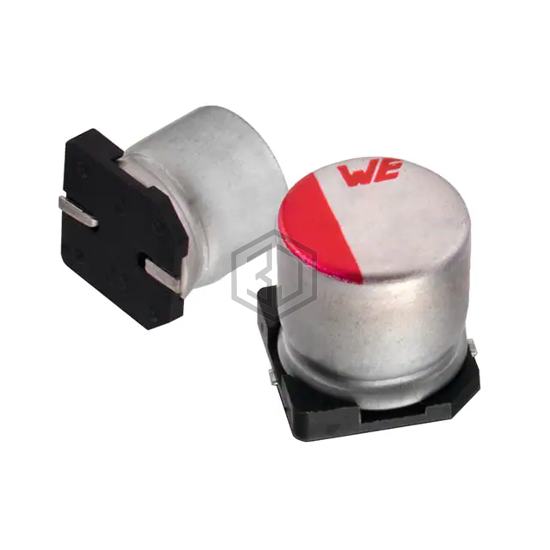

CAP ALUM 33UF 20% 16V SMD
865230343003 is a Aluminum Electrolytic Capacitors manufactured by Würth Elektronik. CAP ALUM 33UF 20% 16V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can - SMD.
In Stock: 1,626
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 44 mA @ 120 Hz |
| Ripple Current @ High Frequency | 66 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.217" (5.50mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UZT1C330MCL1GB | Nichicon | CAP ALUM 33UF 20% 16V SMD | 89% | View |
| 10SGV33M5X6.1 | Rubycon | CAP ALUM 33UF 20% 10V SMD | 80% | View |
| 336SVH025MER | Cornell Dubilier / Illinois Capacitor | CAP ALUM 33UF 20% 25V SMD | 79% | View |
| UWT1A330MCL1GB | Nichicon | CAP ALUM 33UF 20% 10V SMD | 75% | View |
| 865080140003 | Würth Elektronik | CAP ALUM 33UF 20% 6.3V SMD | 69% | View |
| EEE-HB0J330AR | Panasonic Electronic Components | CAP ALUM 33UF 20% 6.3V SMD | 62% | View |
Submit your RFQ for 865230343003 and get a quote within 24 hours.
