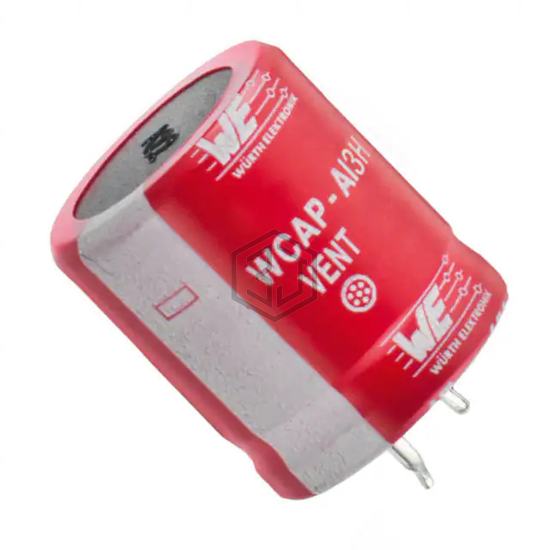

CAP ALUM 3300UF 20% 63V SNAP
861140784012 is a Aluminum Electrolytic Capacitors manufactured by Würth Elektronik. CAP ALUM 3300UF 20% 63V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can - Snap-In.
In Stock: 6,696
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 3300 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.27 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.9056 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41505A8338M000 | EPCOS - TDK Electronics | CAP ALUM 3300UF 20% 63V SNAP | 100% | View |
| UPJ1E332MHD1CA | Nichicon | CAP ALUM 25V POLAR | 76% | View |
| B41858C5338M000 | EPCOS - TDK Electronics | CAP ALUM 3300UF 20% 25V RADIAL | 71% | View |
| LSM332M2A---3535S | Surge | CAP ALUM 100V POLAR | 69% | View |
| MALIEYH07CB433L42K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 20% 100V SNAP | 66% | View |
| B41505A7338M000 | EPCOS - TDK Electronics | CAP ALUM 3300UF 20% 35V SNAP | 62% | View |
