CAP ALUM 680UF 20% 200V SNAP

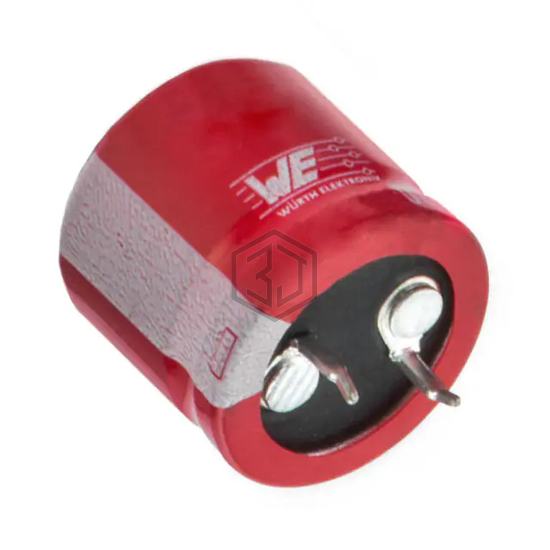

861021085019 is a Aluminum Electrolytic Capacitors manufactured by Würth Elektronik. CAP ALUM 680UF 20% 200V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can - Snap-In.
In Stock: 8,843
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.04 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.8152 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ELXM201VSN681MQ40S | United Chemi-Con | CAP ALUM 680UF 20% 200V SNAP | 97% | View |
| EKMS3B1VSN681MA35S | United Chemi-Con | CAP ALUM 680UF 20% 315V SNAP | 80% | View |
| MAL215976681E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 400V SNAP | 68% | View |
| 678D687M6R3CD5D | Vishay Sprague | CAP ALUM 680UF 20% 6.3V RADIAL | 56% | View |
| 450MXG680MEFCSN35X50 | Rubycon | CAP ALUM 680UF 20% 450V SNAP | 56% | View |
| MAL205878681E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 63V SNAP | 53% | View |
Submit your RFQ for 861021085019 and get a quote within 24 hours.
