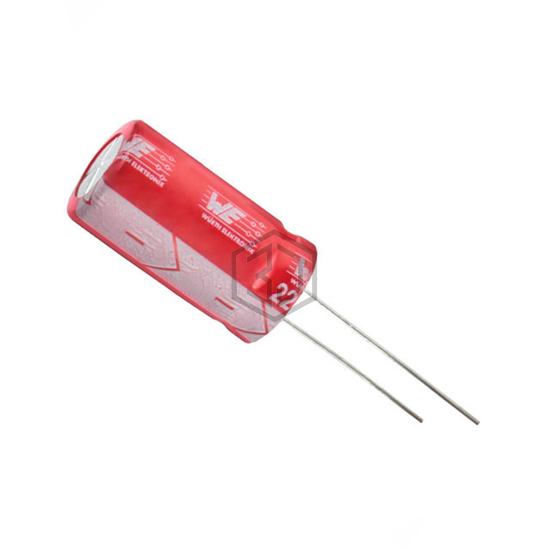

CAP ALUM 22UF 20% 50V RADIAL
860240673003 is a Aluminum Electrolytic Capacitors manufactured by Würth Elektronik. CAP ALUM 22UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 197
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 65 mA @ 120 Hz |
| Ripple Current @ High Frequency | 130 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ESH226M035AC3AA | KEMET | CAP ALUM 22UF 20% 35V RADIAL | 89% | View |
| UVZ1J220MDH | Nichicon | CAP ALUM 22UF 20% 63V RADIAL | 89% | View |
| PF1H220MNN0511 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 88% | View |
| UMF1V220MDD1TP | Nichicon | CAP ALUM 22UF 20% 35V RADIAL | 83% | View |
| MAL212367229E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22UF 20% 40V AXIAL | 81% | View |
| 860160372003 | Würth Elektronik | CAP ALUM 22UF 20% 16V RADIAL | 52% | View |
Submit your RFQ for 860240673003 and get a quote within 24 hours.
