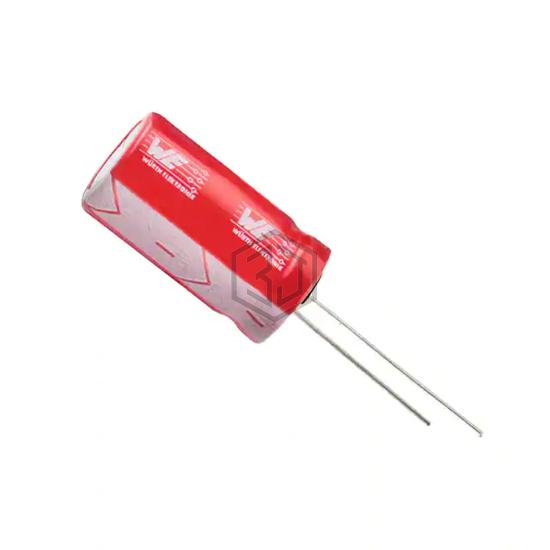

CAP ALUM 330UF 20% 50V RADIAL
860130678009 is a Aluminum Electrolytic Capacitors manufactured by Würth Elektronik. CAP ALUM 330UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 111
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 810 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.1178 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.512" Dia (13.00mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UBW1H331MHD | Nichicon | CAP ALUM 330UF 20% 50V RADIAL | 91% | View |
| EEU-TA1J331B | Panasonic Electronic Components | CAP ALUM 330UF 20% 63V RADIAL | 77% | View |
| UBT1K331MHD | Nichicon | CAP ALUM 330UF 20% 80V RADIAL | 77% | View |
| UBX1H331MHL1TO | Nichicon | CAP ALUM 330UF 20% 50V RADIAL | 73% | View |
| 510DX337M025DG2D | Vishay Sprague | CAP ALUM 330UF 20% 25V RADIAL | 70% | View |
| UBX1V331MHL1TN | Nichicon | CAP ALUM 330UF 20% 35V RADIAL | 64% | View |
Submit your RFQ for 860130678009 and get a quote within 24 hours.
