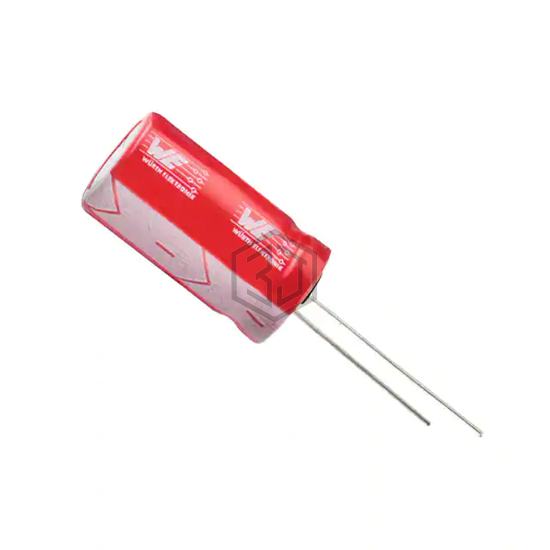

CAP ALUM 330UF 20% 35V RADIAL
860130575006 is a Aluminum Electrolytic Capacitors manufactured by Würth Elektronik. CAP ALUM 330UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 1,265
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 680 mA @ 120 Hz |
| Ripple Current @ High Frequency | 938.4 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 1.043" (26.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL216030331E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 35V RADIAL | 100% | View |
| UBX1V331MHL | Nichicon | CAP ALUM 330UF 20% 35V RADIAL | 83% | View |
| EGXL250EC5331MJ16S | United Chemi-Con | CAP ALUM 330UF 20% 25V RADIAL | 81% | View |
| B41866C6337M008 | EPCOS - TDK Electronics | CAP ALUM 330UF 20% 50V RADIAL | 80% | View |
| UBT1J331MHD1TO | Nichicon | CAP ALUM 330UF 20% 63V RADIAL | 73% | View |
| MAL214031331E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 50V RADIAL | 71% | View |
Submit your RFQ for 860130575006 and get a quote within 24 hours.
