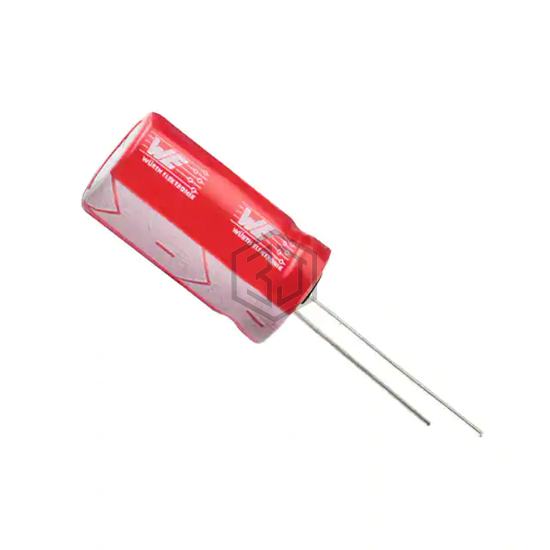

CAP ALUM 220UF 20% 10V RADIAL
860130274003 is a Aluminum Electrolytic Capacitors manufactured by Würth Elektronik. CAP ALUM 220UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 775
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 330 mA @ 120 Hz |
| Ripple Current @ High Frequency | 455.4 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EGXE100ELL221MH12D | United Chemi-Con | CAP ALUM 220UF 20% 10V RADIAL | 77% | View |
| MAL216065221E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 16V RADIAL | 70% | View |
| 25ZT220M10X12.5 | Rubycon | CAP ALUM 220UF 20% 25V RADIAL | 69% | View |
| 35RX50220MEFC10X20 | Rubycon | CAP ALUM 220UF 20% 35V RADIAL | 65% | View |
| MAL211824221E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 10V AXIAL | 64% | View |
| UBW1H221MPD | Nichicon | CAP ALUM 220UF 20% 50V RADIAL | 60% | View |
Submit your RFQ for 860130274003 and get a quote within 24 hours.
