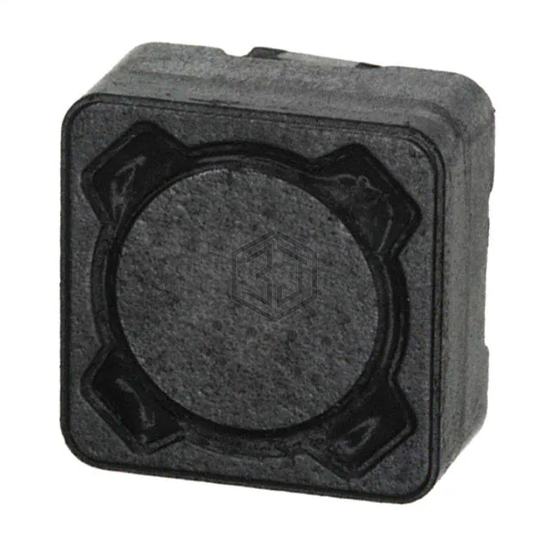

FIXED IND 470UH 900MA 490MOHM SM
7847709471 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 470UH 900MA 490MOHM SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 900 mA.
In Stock: 252
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Nickel Zinc Ferrite (NiZn) |
| Inductance | 470 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 900 mA |
| Current - Saturation (Isat) | 1.1A |
| Shielding | Shielded |
| DC Resistance (DCR) | 490mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 1.9MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | 1210 |
| Size / Dimension | 0.472" L x 0.472" W (12.00mm x 12.00mm) |
| Height - Seated (Max) | 0.406" (10.30mm) |
Submit your RFQ for 7847709471 and get a quote within 24 hours.
