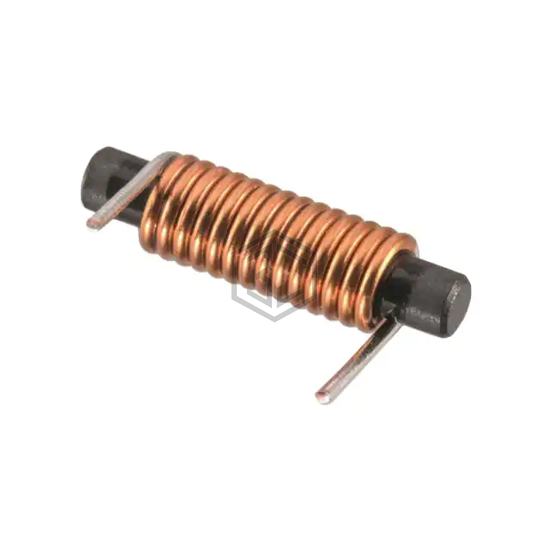

WE-RCIT ROD CORE INDUCTOR THT 10
7847131100 is a Fixed Inductors manufactured by Würth Elektronik. WE-RCIT ROD CORE INDUCTOR THT 10. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C, package / case Radial, Horizontal Cylinder (Open), current rating (amps) 10 A.
In Stock: 157
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 10 µH |
| Tolerance | ±25% |
| Current Rating (Amps) | 10 A |
| Current - Saturation (Isat) | 13A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 8.8mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | 50MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 150°C |
| Inductance Frequency - Test | 10 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Horizontal Cylinder (Open) |
| Supplier Device Package | Radial |
| Size / Dimension | 0.339" Dia x 1.217" L (8.60mm x 30.90mm) |
| Height - Seated (Max) | - |
