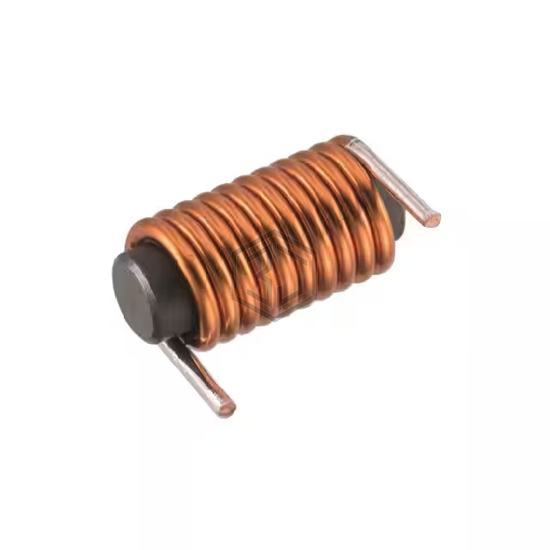

WE-RCIT ROD CORE INDUCTOR THT 6.
7847121060 is a Fixed Inductors manufactured by Würth Elektronik. WE-RCIT ROD CORE INDUCTOR THT 6.. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C, package / case Radial, Horizontal Cylinder (Open), current rating (amps) 6.4 A.
In Stock: 485
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 6 µH |
| Tolerance | ±25% |
| Current Rating (Amps) | 6.4 A |
| Current - Saturation (Isat) | 15A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 11.7mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | 95MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 150°C |
| Inductance Frequency - Test | 10 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Horizontal Cylinder (Open) |
| Supplier Device Package | Radial |
| Size / Dimension | 0.272" Dia x 0.807" L (6.90mm x 20.50mm) |
| Height - Seated (Max) | - |
Submit your RFQ for 7847121060 and get a quote within 24 hours.
