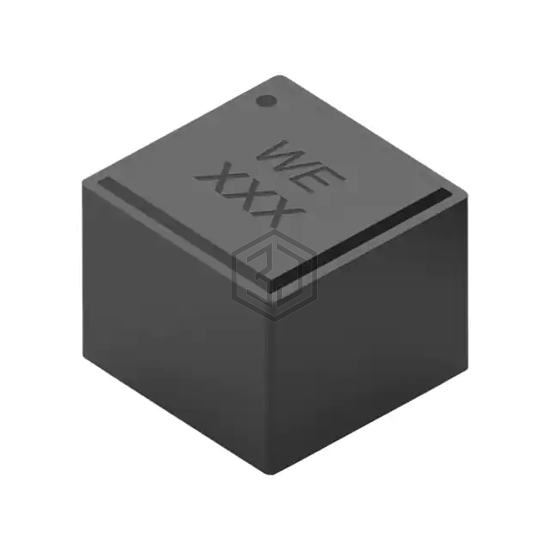

WE-XHMA SMT POWER INDUCTOR 1090;
78439369022 is a Fixed Inductors manufactured by Würth Elektronik. WE-XHMA SMT POWER INDUCTOR 1090;. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 16 A.
In Stock: 300
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Metal Composite |
| Inductance | 2.2 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 16 A |
| Current - Saturation (Isat) | 32.1A |
| Shielding | Shielded |
| DC Resistance (DCR) | 2.2mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | 28MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.457" L x 0.413" W (11.60mm x 10.50mm) |
| Height - Seated (Max) | 0.358" (9.10mm) |
