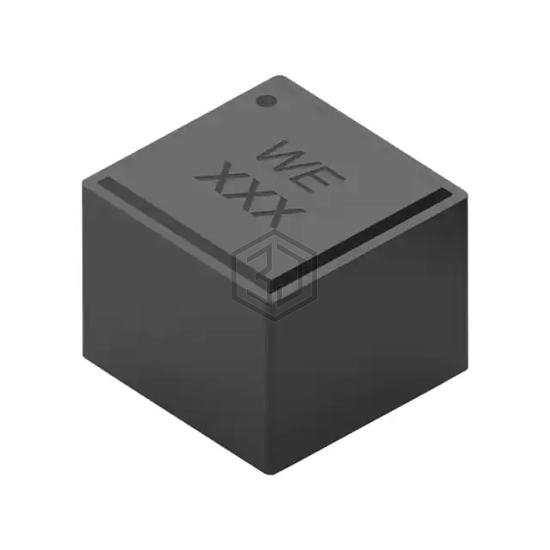

WE-XHMA SMT POWER INDUCTOR 8080;
78439358068 is a Fixed Inductors manufactured by Würth Elektronik. WE-XHMA SMT POWER INDUCTOR 8080;. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 7.2 A.
In Stock: 500
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Metal Composite |
| Inductance | 6.8 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 7.2 A |
| Current - Saturation (Isat) | 17.6A |
| Shielding | Shielded |
| DC Resistance (DCR) | 13mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | 22MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.346" L x 0.327" W (8.80mm x 8.30mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
Submit your RFQ for 78439358068 and get a quote within 24 hours.
