FIXED IND 2.2UH 5.2A 26MOHM SMD

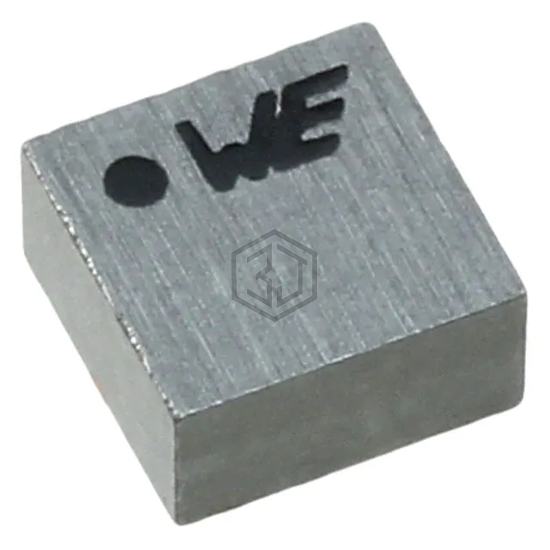

78438357022 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 2.2UH 5.2A 26MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 5.2 A.
In Stock: 10,775
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Drum Core, Wirewound |
| Material - Core | Iron Alloy |
| Inductance | 2.2 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 5.2 A |
| Current - Saturation (Isat) | 7A |
| Shielding | Shielded |
| DC Resistance (DCR) | 26mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 35MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | 4030 |
| Size / Dimension | 0.161" L x 0.161" W (4.10mm x 4.10mm) |
| Height - Seated (Max) | 0.122" (3.10mm) |
Submit your RFQ for 78438357022 and get a quote within 24 hours.
