FIXED IND 1UH 7.2A 15 MOHM SMD

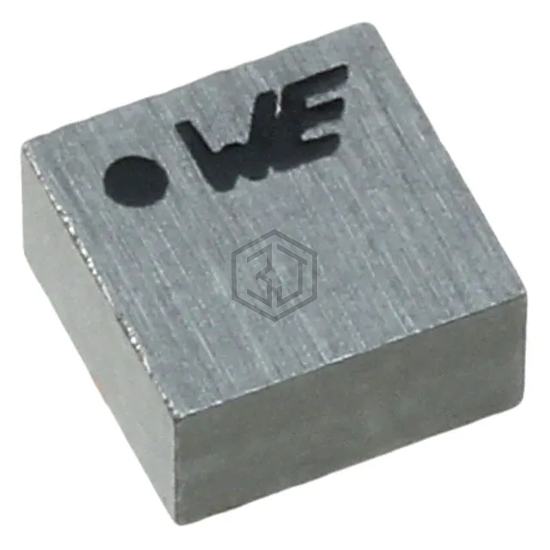

78438356010 is a Fixed Inductors manufactured by Würth Elektronik. FIXED IND 1UH 7.2A 15 MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case Nonstandard, current rating (amps) 7.2 A.
In Stock: 5,831
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Molded |
| Material - Core | Iron Alloy |
| Inductance | 1 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 7.2 A |
| Current - Saturation (Isat) | 9A |
| Shielding | Shielded |
| DC Resistance (DCR) | 15mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 55MHz |
| Ratings | AEC-Q200 |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | SMD |
| Size / Dimension | 0.161" L x 0.161" W (4.10mm x 4.10mm) |
| Height - Seated (Max) | 0.083" (2.10mm) |
